Tags: Noise module

Notes: Module A-118-2 is the slim version of module A-118-1 and offers essentially the same features as the A-118-1. But the distances between the controls are smaller and rubberized small-sized knobs are used. In return the front panel has 4 HP only which is half the width of the A-118-1. The module is primarily planned for applications where only limited space is available. The functional difference between A-118-1 and A-118-2 is the additional T&H/S&H unit which is not included in the A-118-1.

The module generates the signals white noise, colored noise, continuous random voltage and stepped random voltage (derived from the continuous random voltage by means of a S&H/T&H unit).

The noise signal is generated 100% analog by amplification of the noise of a transistor. White and colored noise are usually used as audio sources. The random voltages are normally used as control voltages (e.g. for filter frequency or any other voltage controlled parameter).
The A-118-2 gives you the ability to mix the relative amounts of Red (low frequency component) and Blue noise (high frequency component) in the colored noise output.

For the continuous random voltage the rate of change (Rate) and amplitude (Level) of the random voltage can be adjusted. The continuous random voltage is derived from the colored noise signal by low pass filtering. Consequently the settings of the controls for the colored noise (Blue, Red) affect the behavior of the random voltage! A dual color LED (red = positive / yellow = negative output voltage) indicates the continuous random voltage.

The continuous random voltage is used as source for the S&H/T&H unit. The type of operation can be set to S&H (sample and hold) or T&H (track and hold). When T&H is chosen the output signal follows the input signal (= continuous random voltage) as long as the Clock input is "high". As soon as the clock signal changes to "low" the last voltage is stored. When S&H is chosen the input signal (= continuous random voltage) is sampled at the rising edge of the Clock signal.

For the Clock signal a "digital" signal (e.g. Clock, Gate, rectangle output of an LFO) is required. It does not work with slowly changing continuous CV signals. Another dual color LED (red = positive / yellow = negative output voltage) indicates the stepped random voltage.

Controls:

Blue: share of the high frequencies in the the colored noise output
Red: share of the low frequencies in the the colored noise output
Rate: rate of change of the continuous random voltage
Level: amplitude of the continuous random voltage
TH/SH: switches between T&H and S&H

Inputs and outputs:

RND: continuous random voltage output (with LED display)
TH/SH: stepped random voltage output (with LED display)
Clk: Clock input of the S&H/T&H unit
C Noise: colored noise output
W Noise: white noise output

Important notes:

After power on it takes a few minutes until the two noise signals and the random signals are generated. The module is not faulty when after power on the signals do not appear immediately!

The S&H/T&H function is realized by pure analog circuitry (electronic switch followed by a holding capacitor and buffer). Consequently the output voltage drifts a bit in the holding state because the capacitor is discharged by parasitic resistors. The drift depends also upon environmental conditions like humidity or temperature.

Dimensions
4 HP
40 mm deep

Current Draw
20 mA +12V
20 mA -12V

Notes: Chimera is a granular synthesis module that specializes in drum sounds. It offers a wide range of detailed sample sources as well as its own synthesis engine. Firmware updates can be performed via USB.

The module features various samples called Surfaces. The samples are mainly metallic sounds:

Tambourine
Bells
Drill
Wrenches
Cartridge cases
Coins
Chains
Metal housings
Broken modular front panels

Chimera uses impulsive sounds with lots of detail and long decay times to create detailed shaker-like sounds. The granular synthesizer was developed around the samples here, this has the advantage that the percussion sounds sound so more natural.

Power consumption: 63mA at +12V and 17mA at -12V

Depth: 38mm

HP : 8

Notes: Originally inspired by audience applause, hip-hop samples, and classic drum machines, Fracture is a multi-particle percussion synthesizer that applies concepts from classic analogue clap circuits to granular synthesis methods.

It all starts from proprietary micro-samples we recorded specifically for this purpose and ends with an engine built to suit these samples.
Unlike our other percussion module, Chimera, which uses impulse rich samples as it's tonal center, Fracture uses single impulse samples like claps, snaps, ping pong balls, opening a beer can, and many more. It then plays a group of similar samples back in a psuedo random order for unique hits. Density, Decay, and Tail affect tone and how "tight" your virtual clappers are to playing together.

Our goal was to design a clap percussion module covering the range from classic drum machine claps all the way to full audience applause. We ended up with a module that covers a huge range of timbres beyond claps. We hope this engine provides you with the tools to intuitively create wild percussion sounds that bring your system to life in a new way.

Features
Stereo output
Control over "how many people" and " how tight" they sound together
Built in Hall and Room reverb
Two Trigger inputs for different types of sounds
3 Filter types, 3 Envelope types
Free running, Voltage Controlled "applause" capability
CV over all parameters

Specifications:
Size: 8hp Depth: 38mm (with cables)
Power: +61mA, -17mA
All CV Inputs: 100k ohm impedance
CV inputs sum with knobs
Full sweep is 5V
Gate Inputs: 100k impedance 2V threshold Schmitt Trigger
Audio Outputs: 470 ohm impedance
20Vpp range
1ms latency max

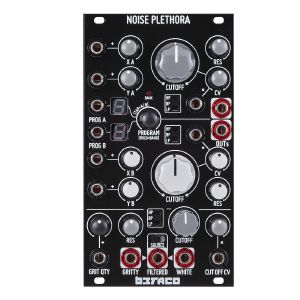

Notes: A typically comprehensive approach to noise sources from Befaco, featuring five different circuits plus two analogue multimode filters and plenty of CV controls for sculpting the output.

Supplier's Notes:
Noise plethora has three different noise generators:

The first two are identical and are composed of digital algorithms followed by a 12dB analog multimode filter.
Each program has two variables (Named X and Y) addressed by two manual controls and two associated control voltage INs.
Ships with an extensive (and expanding) algorithms library: textures, wave clusters, harsh noises, and glitches.

Generator C has three simultaneous outputs:

White. Flat Response Classic white noise.
Gritty. Granulous texture noise, with voltage-controlled grit quantity.
Filtered. Is the White or Gritty noise followed by a 24dB multimode VCF.

A total of 5 different noise sources in one module!

Dimensions:

14 HP
25 mm deep

Current Draw
110 mA +12V
67 mA -12V
0 mA 5V

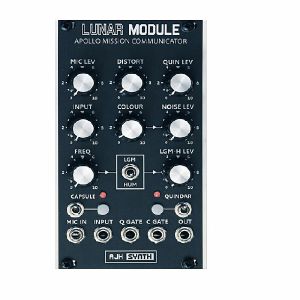

Notes: Truly unique one from AJH, based on the sound of NASA's Apollo voice transmissions. Think outside the box and process drums and synths through this thing. Freaky. May or may not allow you to communicate with real astronauts.

Supplier's notes:
Here's a bit of fun for all fans of space missions from the previous century! This module is designed to re-create the ground to space and space to ground transissions from the Apollo era.

To be "Mission Control Houston" the Quindar PTT (push to talk) button adds a short 2,525Hz Qindar tone to the start of the transission, then at the end of the message the PTT button or switch is released and a short 2,475Hz Quindar tone is added to the audio. The bandwidth is slightly reduced in this mode.

For "Astronaut comms" we press the Capsule PTT switch, which allows us to add coloured noise, distortion, bandwidth reduction and either hum or LGM (Little green men space tone) noise to the audio signal. A deep space electret condenser mic is supplied and an be used with the MIC input.

Obviously the Lunar Module can also be used to add noise, hum, distortion, bandwidth reduction and LGM noise tone to any modular level audio too, and if the mic is left attached theremin like sounds can be added too with careful loudspeaker feedback.

Notes: Crush Delay v3 is a special Echo-Delay unit based on the PT2399 IC, which is able to offer 400ms of clean delay and up to 2 seconds of dirty repetitions, having a special talent to generate noisy-glitch textures. The module bases its operation on controlling the PT2399 chip with circuit bending techniques, converting the unit in an advanced VC digital trash generator. This third version comes with some interesting new features like redesigned VCAs circuits, wider range for clean delay and reduced depth to make it skiff friendly.

The module features a few VCAs to provide a flexible signal route to maximize module's possibilities. First two VCAs at the inputs to control the amount of signal sent to the delay. The first is routed to both the dry/wet mix and the delay, and the second directly to the delay. Combining the second VCA and the FX Send output allows external feedback routings.

Compared with v2, this third version offers a bigger range of clean delay time as well as a revision of some of the Crush modifiers. Combining those modifiers you will have a access to a vast palette of noises and textures that can be used in many different ways. From ambient/drone patches to even percussion sounds.

The VC Feedback features an automatic gain control to keep levels stable at any feedback level.

- Current needs: +12V: 135mA, -12V: 35mA
- Width: 11 HP
- Depth: 30 mm (inc power connector)
- Aluminium, heat-treated front panel
- Designed, kits prepared and modules assembled in Barcelona

Notes: A unique analogue percussion module, based on principles from the legendary 909 twisted into new sonic territory. Capable of everything from classic kicks and snares to more experimental hits and complex VCO effects.

Supplier's Notes:
A machine is born

The Machine began as a quest to create a rich-sounding eurorack snare drum synthesis module to complement the existing Mutant Drums. The project quickly became too large and costly to justify the module being capable only of snare drum sounds. So, the decision was made to learn from the architecture of the TR-909's snare and kick circuits, in order to develop a module capable of generating multiple forms of analogue percussion, and various other effects.

Like the other Mutant Drums, the Machine has its roots in classic analogue percussion synthesis. Even though it can create totally alien sounds, it still has the capability to deliver those classic 909 house snares and kicks if you want them. There are no microcontrollers in the Machine. The signals and waveforms are all generated by discrete components and ICs, for a distinctly analogue sound, and user experience.

Features

Microcontroller-free analogue percussion synthesis engine
Unique Inverter Core oscillators form the MEMBRANE. Each analogue oscillator has three waveforms to select from
Capable of synthesizing everything from heavy-hitting bassdrums to classic 909-style snares and other complex timbres
Modular design gives the Machine many auxiliary purposes, great for modular sound design of many varieties, and not just percussion
The SNAPPY section is comprised of a voltage controlled noise oscillator, for modelling the noisy part of drum timbres
Both MEMBRANE and SNAPPY elements have an external input for replacing the built-in sound sources, opening up many avenues of possibility
13 control voltage and audio inputs, for a fully modular drum experience
7 audio and CV/gate outputs for maximum integration with other modules
Dedicated outputs for each WAVE and NOISE oscillator mean you can use the Machine as a complex VCO in your system, when not synthesizing percussion
Waveform scanning feature generates complex timbres from analog waveforms
The MEMBRANE's waveforms can be scanned through automatically by the wavescanner's voltage controlled clock generator, or an external clock or VCO can be used
SCAN FREQ CV forms a unique form of timbre control, making the Machine act like a complex oscillator at its WAVES output
The ENABLE input allows you to gate the wavescanner on and off with a CV or gate signal

Technical specifications

Width: 29HP | Depth: 30mm
Current draw: +139mA, -115mA @ 12V

Notes: Two oscillators independently set as VCO, LFO, or random generator

This new version replaces the original Twin Waves. All features of the former are retained. You can check all videos, reviews and comments of V1, being sure to benefit of all in the MKII version :-)

Features in VCO mode:

V/Oct tracking over 10 octaves
Tuning lock with octave selection
Through zero and linear FM
Sub-octave output
Hard & soft synchronization
VCA control and CV algorithms selection
Quantizer with various scales
20 algorithm-based synthesis types among:
Wave shaping
Phase modulation
Phase positioning of multiple waves
Up to 5 stacked oscillators in tunable unison
Self-sync with phantom oscillator
Additive synthesis (7 waves)
Variable bit reduction (bit-crushing)
Ring modulator with its own 2nd oscillator
Noise with LPF, BPF, or resonant filter

Features in LFO mode:

Simultaneous signal and trigger outputs
External wave synchronization
Clock controlled rate with voltage controlled multiplier and divider
CV and knob control of output level
Algorithm based wave engine with a selection of:
Wave shaping
Phase modulation
Random levels and vectors (also Brownian)
Randomly spaced triggers and waves
Display with contextual icons and instant reminder help text
LEDs indicating potentiometer vs. value matching, switch settings and output signals
Automatically saved settings for instant recall at power on
Firmware update by playing an audio file via the front panel
Compact and skiff-friendly module

Dimensions
8 HP
21 mm deep

Current Draw
52 mA +12V
17 mA -12V
0 mA 5V

Notes: A deep, comprehensive digital LFO offering 16 waveforms, sync, built-in VCA and more. All made even more powerful by the fact you can control every parameter via dedicated CV inputs.

Supplier's Notes:
Fully voltage controllable Eurorack format, externally syncable, 16 waveform low frequency oscillator with built-in VCA and sample & hold.

Powered by a socketed VCLFO10 IC from Electric Druid.

The core idea behind this module is all about control voltage. Hence all features are individually broken out to CV inputs, making the most use possible of the benefits of the digital wavetable oscillator. This means that the design is geared towards allowing hands-off control of all aspects and some concessions have been made to that effect.

Initial setup basically consists of connecting the power cable to the module and your bus. The cable has a slotted socket for correct orientation, but mind that the red stripe faces the white line on the edge of the pcb. The included screws are nylon in order to minimise rack-rash.

Tuning the module is possible by adjusting the small smd trim potentiometer on the back. It adjusts the offset voltage that affects the center point of the lfo oscillations. It should be close to its three o'clock position, but you can adjust it by turning the module on, reducing the output level to almost zero and turning the trim potentiometer until you find the point where the gate output led just barely turns off.

The LFO sync type is hard sync, meaning that it resets the current cycle to the beginning of the waveform. It does not control the duration of the cycles. This allows you to further shape the output to, say, three quarters of a sinewave by using external sync and adjusting the HZ knob so the duration of a cycle is just a little longer than the time between incoming sync pulses.

Color coded nuts indicate the type of jack, with gold representing Gate/Trigger input, black is +-5v CV inputs and red jacks are outputs.

The CV inputs are scaled down to +-2.5v and added/subtracted with the knob setting, meaning that to sweep the full range of the parameter with CV, the knob should be in center position. The inputs are clipped to the allowed range after mixing, so you can apply any eurorack voltage here.

The module's core processor is socketed, so using a simple PIC programmer and some basic Assembly knowledge you can modify its functionality to suit your needs.

The code is written by Electric Druid who supplies the chips preprogrammed.

Height: 3U (128.5mm)
Width: 12hp (60.6mm)
Depth from panel: 31mm
Depth total: 51mm

+12v: 80mA
-12v: 60mA

Notes: Very nice old-school vocoder for Eurorack, featuring a built-in mic pre-amp and full 10-band patch bay. Internal VCO and straightforward control setup help simplify operation.

Supplier's Notes:
The VXC-2220 is an 10-band analogue vocoder with patch-bay for each individual filter section. VXC-2220 vocoder is based on the iconic classics 222 vocoder. For stand alone usage the VXC-2220 is equipped with an internal oscillator generating saw and pulse waves form C1 to C6. A simple and efficient vocoder.

Specifications

Microphone input for speech signal
Line input for speech signal
Line input for carrier signal
Input level control for speech and carrier signal
Output level control
Line output
10-Band analyzer outputs
10-Band synthesizer input
Internal VCO (1 semi-nut step size);
* Saw wave (C1 - C6)
* 3x 10% Pulse wave (C1+C2+C3 - C4+C5+C6 )
* White noise
- Synthesis for 's' and 't' sounds
- Feed-trough level control for speech and carrier channel
- Bypass switch
- 10pin power connector (+/-12V)

Dimensions:
(36HP) 128,5×182.5mm (depth: ca. 35mm incl. power connector)

Power Consumption:
+12V = 125mA
-12V = -125mA

Notes: CV Random is a random CV generator with 4 types of randomness and a triggerable sample-and-hold function.

Sliders allow you to set the internal clock tempo (RATE), shape the probability of triggering (PROB), blend old with new values (RND) and set the shape of all four random outputs (SHAPE).

4 different sliders

RATE

Sets the tempo of the internal clock. The CV input below the slider adjusts the clock rate, with 1V/oct calibration when the CV attenuverter is 100%. Upon each clock trigger, the RATE slider light blinks, and there is a chance for the internal random source to generate a new value.

PROB

This probability is set by the PROB slider, and if a new value was generated, the PROB slider light blinks and a pulse is emitted from the TRIG output.

RND

When the internal random source generates a new value, it mixes the previous value with a random value, with an amount specified by the RND slider.

SHAPE

The SHAPE slider sets the shape of all four random outputs. At its lowest position (0%), all outputs immediately jump to the new random value (the target value) when the clock is triggered.

At non-zero positions, the outputs interpolate between the previous and the target value, using a different behaviour for each output.

Internal random clock source

Whenever the clock activates, the RATE slider's light flashes. At the same time, there's a chance that the internal random source will create a new value, depending on the PROB slider's setting.

If it does create a new value, the PROB slider's light flashes too, and a pulse comes out of the TRIG output.

External IN & TRIG inputs

If the TRIG input is patched, the RATE slider is ignored, and the internal clock is only triggered when an external trigger is received. The PROB slider is used to filter this trigger by applying some probability.

Self-modulation

Thanks to a switch in the back of the module, you can normalize the LIN output to the 4 CV inputs and adjust the amount of modulation for each parameter with the attenuverters.

This adds another layer of randomness to your results, enabling more dynamic and unpredictable outcomes.

SHAPE Outputs

The STEP output jumps to the new value in one step at 0% SHAPE, and divides the transition into 16 steps at 100% SHAPE.

The LIN output immediately reaches the new value at 0% SHAPE, and takes the whole clock cycle to do so at 100% SHAPE, staying constant in between.

The EXP output shifts exponentially, becoming linear at 100% SHAPE, with its pace adjusted by the SHAPE slider.

The SMTH output transitions smoothly, with the speed controlled by the SHAPE setting, holding at the target until the cycle ends.

Specifications

Dimensions 10HP - 50×128,5mm
Current 63 mA +12V / 11 mA -12V / 0 mA +5V
Input & Output Signals +/-10V
Impedance Input 10k - Output 10k
Materials PCB and Panel - FR4 1,6mm
Depth 40mm including connectors (Skiff friendly)

Notes: Envelope generator meets VCA meets sound source, combining to create a powerful sequencing tool, modulation generator, compression-style effect and more. Versatile.

Supplier's Notes:
Cascade is a ratcheting envelope generator, VCA, and sound source all within a compact form factor. The unique interactions of its feature set open up new worlds of rhythmic patching and modulation. Easily create ratcheting sequences, bouncy-ball modulation, and pumping compression, all within a single module.

At its core, Cascade is a powerful envelope generator, which is normaled to a high fidelity 2164 based VCA. You can patch in external audio to the VCA, or take advantage of 4 internal audio algorithms: white noise, 808 kick and hi-hat, and a high frequency sine tone. Cascade will open up your system in ways that make you wonder how you ever lived without it.

Tech Specs:
Width: 10HP
Depth: 28mm
Current Consumption: +12V=131mA, -12V=40mA, +5V=0mA

Notes: The Dystopia is ideal for complex patches where sound can be used to thicken the sound or filter out frequencies. It features a noise generator which can provide white, white to pink, white to blue, scatter, digital, pitch types of noise. The digital noise is brilliant as it can be used as a random gate generator. The bit crusher stage can range from one second up to 8kHz - meaning you can obtain really thick distortions - ideal for a range of styles of music. You can reference all the signals through the four LEDs too - which help you determine the level at which the module is pumping out the noise sources.

Noise Generator (white, white to pink, white to blue, scatter, digital, pitch)
Bit Crusher with range from 1sec up to 8kHz
Digital Noise can also be used as a Random Gate Generator
Dual Filter (parallel) 12dB Low Pass and High Pass Filter
When you insert a signal to the External In, the Internal Noise generator is cancelled and the External Signal is in process
LED indicator for all controls to illustrate the current CV Sum

56 mA +12V
67 mA -12V
35 mm deep
10HP

Notes: Aphelion packs a stereo distortion and low/high pass filter into a compact 8HP design, making it ideal for live performance setups. It features three unique stereo distortions in parallel with a continuous crossfade between them, controlled with the character knob or a cv input.

The first circuit is an overdrive that adds a lot of warmth and fattens up the sound without becoming too harsh.
The second one is a saturating wavefolder, that can add interesting extra harmonics depending on the waveform of the material.
The last distortion is inspired by the classic RAT guitar pedal. It adds an aggressive feel and grit to the sound.

A mix knob lets you blend the dry input signal with the distorted signal, before it hits the filter. Setting it fully dry bypasses the distortion effect.

If you need even more dirt, there's a handy +12dB gain switch, to really drive the inputs into overdrive. If you want to keep your low-end undistorted, you can switch on the Low-cut filter.

The non-resonant. This filter is also overdriven, adding some warm distortion and extra harmonics to the stereo filter combines a low pass and high pass stage, and uses an IC based on the classic SSM2040original signal, and limiting the output level. The cutoff knob has no effect in the centre, turning CCW creates a low pass and CW a high pass effect. It's possible to control the low and high pass filter cores independently using CV.

The filter bypass switch can be used for instant reintroduction of all frequencies into the mix upon release-a great tool for live performers.

Lastly the level knob can be used to attenuate the output.

Power: +12v - 100mA, -12v 80mA

Notes: Two fuzz channels based on the fuzz face circuit with a built-in pickup simulator.

Gnarly is a 7 knob beast that will destroy whatever you throw at it. It has many dead zones in the pots that will adjust based on the position of other pots. It's all about finding the sweet spots and living on those fine edges. The transistor pairs on this section are replaceable.

Oomph is a 5 knob bass friendly take on the fuzz face and compliments the upper harmonics of the Gnarly section.

Pickup simulator - Fuzz circuits offer unique sound when paired with the inductance of the pickup coils in a guitar. This why it is often suggested to have fuzz pedals as your first in a pedal chain. So After Later built-in a coil to simulate your eurorack signal being emitted by a guitar pickup. After Later also included a pickup simulator output so you can use it to interface with other fuzz instruments (pedals, modules, etc.).

As an added oddness - you can also input your guitar into the pickup sim output (just don't plug anything into the normal input). This will still get you Eurorack level output. Please don't input Eurorack levels into the pickup sim output.

Tips - Experiment with the pickup simulator and buffered signal. Use the PS.Level to keep the signal low, borderline on cutting out. You find lots of joy in the gnarly section by keeping this level at the edge.

Width: 10hp
12V: 15mA
-12V: 10mA

Notes: The STATIC module is a comprehensive collection of noise sources generated with different methods.

Tech specs:

-width 10HP
-38mm depth behind the panel, including the power connector
-2 control pots : MORPH, SPECTRUM
-1 switch : spectrum type TR/CHIP
-8 outputs : MSWHITE, MSPINK, ZNWHITE, ZNPINK,
DARK, MORPH, TROUT, RNDVOLT
-standard 10 pin euro power +12V / -12V
-power consumption +12V 35mA , -12V 30mA

Notes: The SD909 adapts the iconic TR-909 snare drum and noise generator for use in the Eurorack modular synthesizer format. Tiptop painstakingly tested the module in their lab to sound like a fresh machine coming off of the assembly line back in the 80s. On top of the original circuit, Tiptop have added new features that expand the palette of what can be produced with this analogue circuit.

The sound of the SD909 consists of two main sections: the binary noise generator and two modulated triangle oscillators. The oscillators provide the low end punch while the noise makes up the upper sonic spectrum, resulting in a combination that makes the 909 snare sound so rich. In the SD909 module, the noise generator and oscillators are variable and voltage-controllable, pushing the circuit beyond its original boundaries, offering new sounds and many variations of the original tone. The panel also has markings to guide setting the knobs to reproduce the vintage snare sound of the original machine.

Just like the other drums in this series, the SD909's high-powered output gain stage allows further enhancement of the sound through distortion and clipping. Tiptop have designed a dual pulse-shaper circuit on each gate input so you can trigger your SD909 with Trigger/Gate signals from step sequencers, clock dividers, or any other pulse/clock sources. Also, the SD909 is equipped with access to the MIXZ MixBus, matching the rest of the Tiptop line of percussive modules.

TR-909 is a Trademark of Roland Corp Japan

Size: 8HP
Depth: 46mm
Power: +12V 35ma / -12V 30ma

Notes: The uS&H / RANDOM / NOISE module combines several functionalities for (pseudo) random control; it includes two sample & holds (one of them can be switched to track & hold) and a random/noise section. The latter can be switched between two types of random CV (stepped / smoothed), these either at an internal, tapped rate or an external clock.

Please note: These micro modules need a carrier, like the uBASE module. They cannot be mounted directly into an AE case.

Notes: Aphelion packs a stereo distortion and low/high pass filter into a compact 8HP design, making it ideal for live performance setups. It features three unique stereo distortions in parallel with a continuous crossfade between them, controlled with the character knob or a cv input.

The first circuit is an overdrive that adds a lot of warmth and fattens up the sound without becoming too harsh.
The second one is a saturating wavefolder, that can add interesting extra harmonics depending on the waveform of the material.
The last distortion is inspired by the classic RAT guitar pedal. It adds an aggressive feel and grit to the sound.

A mix knob lets you blend the dry input signal with the distorted signal, before it hits the filter. Setting it fully dry bypasses the distortion effect.

If you need even more dirt, there's a handy +12dB gain switch, to really drive the inputs into overdrive. If you want to keep your low-end undistorted, you can switch on the Low-cut filter.

The non-resonant. This filter is also overdriven, adding some warm distortion and extra harmonics to the stereo filter combines a low pass and high pass stage, and uses an IC based on the classic SSM2040original signal, and limiting the output level. The cutoff knob has no effect in the centre, turning CCW creates a low pass and CW a high pass effect. It's possible to control the low and high pass filter cores independently using CV.

The filter bypass switch can be used for instant reintroduction of all frequencies into the mix upon release-a great tool for live performers.

Lastly the level knob can be used to attenuate the output.

Power: +12v - 100mA, -12v 80mA

Notes: Analogue discrete Synthvoice with two VCOs, three SUB-VCOs, Wavefolder, Noise, Ring Modulator, two loopable ADRS, two LFOs/VCOs, MIXER, 24db Lowpass VCF, VCAOur new Eurorack flagship hits stores this summer. Very compact (pre-patched) discrete synth voice module with excellent analogue technology for endless soundscapes at a reasonable price.

Two discrete VCOs with highly stable tracking

Three analogue Suboscillators (3/4-1/2-1/4 with SQUARE, SAW, TRI) + Gravity Mix -Sync

Wavefolder (VCO 1 TRI WAVE)

White Noise

XOR Ringmodulator

Discrete VCA

24dB LP VCF with overdrive

Dual analogue LFO (one also usable as VCO) with incredible range and keytracking -Two superfast and punchy analog ADSR sections with LOOP function and four TRG outputs (End of ATT, End of DEC)

Mixer section with Master level -Glide presets and huge Patchfield to communicate with other Eurorack Modules.

Screwed metal shaft potentiometer

Rackspace: 36TE
Depth: 25mm

Notes: The MA808 is a Eurorack module that recreates the TR-808's analogue Maracas drum voice and white noise generator at a low cost, expanding your Tiptop Audio modular drum machine. It features a fluffy, harmonically rich sound that enhances Hi-Hats dynamics. The Attack control knob allows adjustments from sharp Hi-Hat to slow-rise Maracas, with a marker for the original 808 setting.

The MA808 also includes the 808's continuous analogue white noise generator, ideal for creating custom drum sounds or general white noise use. It faithfully reproduces the original 1980s circuit and includes a high-powered gain stage for hot, distortable signals. The dual input pulse-shaper ensures stable triggering from various pulse sources, making the MA808 an easy and powerful addition to any modular synth setup.

TR-808 is a Trademark of Roland Corp Japan

Size: 4HP
Depth: 14mm
Power: +12V 16ma / -12V 14ma

Notes: SetonixSynth Sands Of Time 1U Filtered Noise Source Module

The SetonixSynth Sands of Time is a compact 1U noise source which contains two separate noise circuits: a transistor-based analog noise generator similar to those used in many classic modular synth systems of the '60s and '70s, and a CMOS logic-based fixed oscillator bank as found in some of the great drum machines of the '80s, particularly of the TR series.

Either or both of these noise sources may be routed to a sweepable active bandpass filter, perfect for shaping the noise into many different "flavors," from low-frequency rumble, to chest-thumping midrange snare source, to hissing raw hi-hat noise and everything in between.

In a very small package, the Sands of Time provides a full palette of audio frequencies and Noise-like sounds which are useful in many popular patching techniques, especially analog drum patches and "Noise Walls" along with the generation of pseudo-random voltages for use with Sample & Holds, slew generators, and more.

Though it demands just 10hp of 1U rack space, the Sands of Time is still a useful and diverse noise source with some "oomph," a crucial yet often overlooked addition to any setup or patch.

Width: 10 hp (Intellijel 1U format)
Depth: 35 mm
Peak Current Draw: 25 mA @ +12V, 25mA @ -12V
