Tags: Waveshaper module

Notes: Designed with versatility in mind, the Fold 6 is a six-stage wavefolder with simultaneous series and parallel outputs, dual signal inputs and voltage-controlled folding and overdrive shaping.

Supplier's Notes:
Often considered to be the opposite of filters within a modular system, wavefolders are designed to fold a signal over itself multiple times. This generates additional harmonics, resulting in rich timbres.

While there is a bewildering array of filter types within the synthesiser world, most wavefolders fall within only a few categories. Diode wavefolders in particular come in just two variants: series and parallel circuit topologies. Choosing a specific folder also means being limited to specific sounds and capabilities.

For the first time, Fold 6 puts forward a 6-stage hybrid series/parallel topology, yielding a greater sonic palette than ever in just 4 HP. Having both main (series) and alternate (parallel) outputs means a single module now gives access to just about all wavefolding tones imaginable.

To take things even further, an integrated symmetrical soft clipper limits the output signals to approximately 10 Vpp, keeping the amplitude within typical Eurorack levels and making it easier to create overdriven sounds at high fold ratios. This clipping stage can be driven continuously using the shape parameter, smoothly transforming the folded waveforms into pulse waves for even more harmonic content.

Two signal inputs are included, to mix audio signals or add in a DC voltage for asymmetric folding. The symmetry can also be manually controlled using the dedicated knob. Of course, both fold and shape parameters feature voltage control, to enable continuous timbral modulation.

Moving beyond simple signal processing, Fold 6 also lends itself perfectly for feedback patching, CV folding or frequency multiplication; its modest size belies the sonic capabilities within.

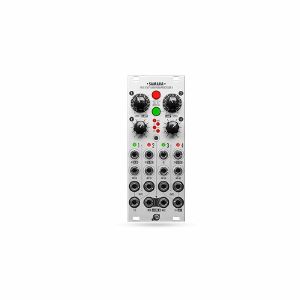

Notes: Samara is a "Swiss Army Knife" type of module, intended to serve the most common voltage and audio signal processing purposes such as attenuation, offsetting, mixing, inverting, and even basic waveshaping. Samara features four channels, each with two inputs and an attenuator, additional switchable offset generators, four voltage level and polarity indicators, two adders with switchable scale, and a precision four-channel processor that selects minimum and maximum voltage.

Notes: The successor to Dinky's Taiko, Tyso Daiko is a 12-bit dual digital drum voice, with built-in analogue tilt EQ and wavefolder, plus extensive CV control. Intuitive, powerful and versatile.

Supplier's Notes:
The 'Tyso Daiko' is a dual 12-bit digital wavetable drum voice with full voltage control and an analogue EQ output path.

The twin voices are independently triggered and output, but share pitch, envelope and other parameters of a swept wavetable oscillator. One voice is output through a voltage controlled analogue tilt EQ emphasising upper or lower frequencies.

The other voice is output through a digital wavefolder which adds increasing timbral complexity (to noise).

Both voices respond independently to an accent input and the first voice is able to be 'choked' . A surface control allows for fine control of additional transients from a click to a slow attack. Full voltage control including a V/Oct pitch input makes the Daiko an expressive and wide ranging drum module with extremely wide pallet of sounds with lots of modulation possibilities.

The Daiko succeeds the original Dinky with the same spirit but much improved control, new features and new wavetables.

Technical Specifications

Supply: +12V 70mA Max / -12v 35mA
Size: 14 HP
Depth: 32mm

Notes: Better known for analogue modules, it turns out Erica Synths are pretty damn good at digital too. Draw your own waveforms, build wavetables, tweak in real time and get freaky. Killer VCO.

Supplier's notes:
Erica Synths Graphic VCO allows you to draw your own waveforms, arrange them in wavetables and wavetable banks, morph between two selected waves and alter the resulting wave in advanced ways (FXes) - apply FM, phase distortion, ring modulation, wavefold/wavewrap, bitcrush.

Waves, wavetables, FXes and other settings can be saved and recalled from the memory instantly. The module has two outputs - the main output and the output with configurable suboscillator.

NB! To have the module functionality up to date, we recommend you to check the Erica Synths home pageor our social media from time to timefor announcements about firmware updates for the Graphic VCO. You can update the firmware of the module via miniUSB cable. More detailed instructions of the firmware update can be found in the User Manual.

The sound is clean, modern, punchy and detailed thanks to the unit running at 96kHz - quite different to some low bit-rate wavetable oscillators on the market. Wavetable interpolation is smooth as butter and with the built-in effects you can dirty things up in many different ways. The module scores highly on the sound front. The Graphic VCO is a very capable oscillator module with excellent sound quality and a lot of features that could make it the right choice, especially if live performance is your thing. - Sound On Sound
The bottom line is that the Graphic VCO is a joy to use. It's a module that's unashamedly digital, yet unmistakably eurorack. I think Erica showed a great deal of careful judgement and restraint in the design of this module. It would have been easy to have made it bloated and cumbersome trying to cram as many features as possible into it, but they kept it fairly simple which keeps the module fun and immediate in use. It's capable of a huge tonal palette ranging from beautiful to brutal that is bound to fit in with a lot of different styles and systems. - Ask Audio
The ability to draw and then effortlessly jump between different custom digital waveforms in this way feels unique on the Eurorack stage, and allows for a wide range of tones and transitions between them. - Orb Mag

Technical specifications:

Audio output amplitude
10Vptp
Octave range
C0-C8
Sample rate
96kHz
Unipolar CV input range
0 -+10V
Bipolar CV input range
-10V -+10V
Panel Width
16 HP
Module depth
30mm
Power consumption
152mA@+12V,
20mA@-12V

Notes: Want some distorted drums or thicken up the final mix but you are short in rack space? Pico Drive is the answer! Pico Drive is combined wavefolder overdrive module that features manually adjustable Gain and Drive level, CV control over Gain and Drive adds more expression, while built in limiter prevents output signal to run into undesired clipping.

Features:
Manual Gain and Drive controls
CV control over Gain and Drive
Wavefolder
Output signal limiter
Input and output protection against undesired overvoltage

Technical specifications:
Audio output level: -5...+5V
CV level (full span): -5V - +5V
Power consumption: 29mA @ +12V, 29mA @ -12V
Module width: 3HP
Module depth: 35mm

Notes: Versatile and valuable. The amazing Dreadbox Utopia is a CV audio and manipulator. It allows you to control a wide range of different properties inside your Eurorack system. These include four attenuverters, an offset generator, and a four to three mixer. This selection of tools give you the means to take control of your signals and bend them fully to your liking. Helping you put the finishing touches to your synth patch.

40 mA +12V
27 mA -12V
23 mm deep
10HP

Notes: Capt'n Big-O is for people who like big massive analogue sounds-. 100% analog components, no oscillator on a chip here.

Width = 14hp

Depth = 26mm

100% analog, original design (not an oscillator on a chip)

Waveforms - sine, triangle, saw, and square

Wave folder/waveshaper - routed by default to sine but patchable to any waveform or external source

Drive circuit - essentially a 75x overdriven VCA (5V output)

Linear and exponential frequency modulation (FM)

Hard sync

Pulsewidth modulation

120mA power draw when running +12V rail

108mA power draw when running -12V rail

Frequency range of oscillator: full range - LFO through audible spectrum

Input voltage range of oscillator = -10V to +10V

Notes: This is an exact hardware replica of the Mutable Instruments Blades module.

This model uses the original "hard-to-find" opamps, but After Later have substituted V2164M with AS2164D. All of After Later's products use AS2164D and there should be no measurable change in behaviour.

Notes: Building on the familiar dual VCO core arrangement of Carrier and Modulator, Mindphaser is a complex oscillator which departs from this bit of ancestral DNA with a modern toolkit focused on searing, phase-modulated leads, percussive basslines and other-worldly effects!

A diverse palette of intermodulation and harmonic experimentation is offered through the Modulation Bus, its unique Waveshaper and the dedicated Thru-zero Phase Modulation Bus. An intuitive interface provides colour-coded visual feedback and responsive indication while performing in dimly-lit environments.

Two precision analogue oscillator cores

Precision, wide-range V/oct ramp cores, each ranging from deep subsonic to supersonic frequencies (ramp cores, and not triangular, deliver the ideal waveforms for analogue phase accumulation in the TZ-PM Bus)
Each core generates fundamental waveshapes which interact and mangle one-another through the complex Modulation Bus and TZ-PM bus
Simultaneous waveform outputs for each base shape
Dedicated button to toggle between RAMP or SAW for each core, inverting the phase of the ramp output
V/oct, linear FM and exponential FM inputs which are all independent of the TZ-PM functionality. The Carrier's FM occurs inside the core itself, separate from the TZ-PM bus.
DC-coupled linear FM

Carrier

The heartbeat of Mindphaser, focused on audio-rate generation. Drives the WAVESHAPER and TZ-PM bus. This core's frequency range spans the audible spectrum.

- An external hard SYNC IN forcibly resets the core, useful for punchy sequences, percussive basslines and drum synthesis -- or to sync to another VCO.

- Coarse and fine controls conveniently span the audible spectrum. Ranges further with external CV.

Modulator

An extremely wide range oscillator, spanning from deep LFO frequencies all the way up to supersonic sound! Four base waveforms and diverse internal routing options form a versatile palette of modulations for the CARRIER to feed on.

- Activating hard SYNC on the Modulator locks its core to the Carrier's heartbeat. The effect can be dramatic. Try this while phase modulating!

- Octave RANGE switch lets you quickly flick up and down between octaves. All the way beyond audio-rate and LFO speed octaves. Perfect for experimenting with different PM sidebands and taming the wide frequency range of the Modulator.

- Manual PW (Pulse Width) control and dedicated CV input for PWM.

Waveshaper

This isn't a classic waveshaper! Developed anew from the ground up, this waveshaper is focused on deep harmonic experimentation and audio obliteration. Each waveshaper parameter is capable of being "turned up to 11".

FOLD up to 5 octaves above the fundamental Carrier frequency. A ceiling forms at maximum, imparting additional harmonics.

FEEDBACK the waveshaped and phase-modulated audio through a signal path internal to the waveshaper.

AMPLITUDE modulation spans thru-zero, allowing for full-range ring modulation effects with bipolar CV or audio signals.

CLIP the final stage of amplitude with the switch to introduce a last stage of harmonics before the complex signal exits through the final OUT.

Switchable inverting attenuators on each CV input, for quickly inverting the behaviour of your modulation. The indicator illuminates red to tell you the attenuator has been inverted.

Two distinct waveshaping modes

A press of the shape switch toggles Mindphaser between RAMPOID (green) and TRIANGULAR (yellow) waveshaping modes.

These modes have a remarkable effect on the behaviour of wavefolding and overall character of the final complex OUT, in addition to TZ-PM Bus character.

RAMPOID mode folds more asymmetrically, with raucous, buzzing harmonic artefacts as you sweep and introduce TZ-PM

TRIANGULAR mode folds more symmetric, splitting the complex sine wave at its peak centre of the waveform. TZ-PM character is less raucous, and more smooth.

TZ-PM Bus

Thru-zero phase modulation in the ANALOGUE realm! Unlike its digital counterpart, analogue TZ-PM has its own character we've come to expect from analogue circuitry!

A dedicated, voltage-controlled phase modulation bus completely separate from the Mod Bus
Modulator's SINE wave normalled to the PM SOURCE input
SOURCE input allows you to modulate phase with any signal you patch in
Dedicated voltage-controlled INDEX (amount)
Manual phase lets you zero in (or not!) on the base phase before introducing modulation
Independent of the Linear FM circuitry in the Carrier core

Mod Bus

The internal modulation powerhouse, normally fed by the Modulator core, but external signals are patchable as well.

Select from the PULSE, RAMP/SAW or SINE output of the MODULATOR, or inject your own SOURCE to the bus.

Voltage-controlled INDEX behaves like a macro control when combined with various amounts and polarities dialled in at each CV destination.

Internal sends include the Carrier's classic Linear FM, Amplitude, Feedback and TZ-PM Index, with variable amounts and polarities!

Modulator waveforms internally feeding the Mod Bus behave unipolarly, for predictable modulation of every Mod Bus destination, without external patching. By patching in one of the Modulator's bipolar waveform outputs manually (or any external signal), you can override this behaviour.

Dimensions
30 HP
24 mm deep

Current Draw
110 mA +12V
100 mA -12V

Notes: The Erica Synths Black Ring-Xfade is an extremely versatile module for sound shaping. It consists of two unconventional ringmodulators/waveshapers, a crossfader that works both for audio and CV and a VCA. Unlike conventional ringmodulator that works only with a signal present on both signal and carrier inputs, the Black Ring-Xfade passes through the signal without alteration, if no carrier is present, but low level signals on the carrier input result in unique waveshaping. Add the crossfader between two ringmodulators (or as a separate unit) topped up with the VCA, and you have an amplitude modulation powerplant in 10HP!

Ring1 CV; Ring2 CV
These are the ringmodulator carrier (CV level) level controls. Unlike conventional ringmodulator, this one passes signal unaltered, if RING CV is turned down. With increasing Ring CV level a slight waveshaping turns into proper ringmodulation.

Xfade
This is a manual Crossfade control. This fades smoothly between signals patched into XFADE IN1 and XFADE IN2. The XFADE CV is added to the knob position.

Coupling
Set the Crossfader mode - AC is optimized for use with the audio signals, DC - for control voltages (but it will work fine with audio, as well).

Ring 1; Ring 2
The green LEDs give visual feedback on signal levels, applied to XFADE IN1 and XFADE IN2 respectively.

Vol CV
Select the VCA CV response. A 0-10V setting is intended for use with the envelope generator, a -5V - +5V setting - for nice tremolos with a LFO.

Xfade IN1; Xfade IN2
These are the Crossfader inputs. They are normalled to the Ringmodulator ouputs, so, if nothing is patched here, you can crossfade between two ringmodulated signals.

Xfade CV
This is the Crossfader CV input. The CV is added to the XFADE knob setting.

VOL CV
This is the VCA CV input. The VCA is post-crossfade - it controls the amplitude of a resulting signal after the crossfader. It will also work with low frequency control voltages applied to the XFADE Ins - nice for designing unconventional modulations.

Ring1 Out; Ring2 Out
These are the ringmodulator outputs.

Xfade Out
This is the Crossfader output and the main output of the module.

Ring2 In; Ring2 CV
These are the second Ringmoduator signal and carrier inputs respectively. These two are normalled to the RING1 inputs, and if no signal is patched here, the duplicate the first Ringmodulator. Interesting trick is to set RING CVs at different levels and crossfade between two ringmodulator signals.

Ring1 IN; Ring1 CV
These are the first Ringmoduator signal and carrier inputs respectively.

Fade L; Fade R
The red LEDs indicate the crossfader position.

Xfade CV LVL
This is a crossfade CV level attenuator. By adjusting it you can control a span of fading between inputs.

Specs:
Audio level 10Vptp
CV level (full span) -5V - +5V
Power consumption +38mA, -32mA
Module width 10HP
Module depth 35mm

Notes: Module A-184-2 is the combination of two functions and planned primarily as an expansion module for VCOs or LFOs (e.g. A-110-1, A-110-2, A-145, A-147-2).

Triangle-to-Sine Waveshaper:

The upper section is a very precise triangle-to-sine converter (thanks to Tim Stinchcombe who recommended this circuit). It can be used to convert any triangle waveform into a (nearly) perfect sine. The converter is much better than the simple diode converter used in the A-110-1, A-111-1, A-145 and A-147-2. Two trimming potentiometers are used to optimize the sine shape. The converter should be assigned to one VCO or LFO because the trimming potentiometers have to be re-adjusted if the input level or DC offset of the input signal changes. If the trimming potentiometers are deliberately mis-adjusted it can be used also as a waveshaper for non-sine waveforms (e.g. sine-shaped at the top of the signal and a peak at the bottom, even voltage controlled by applying an additional voltage to the waveshaping circuit, "circuit-bending" notes will be available).

The waveform converter is DC coupled and can be used also for low frequencies (e.g. LFO triangle waves).

Voltage Controlled Crossfader:

The lower section is a voltage controlled crossfader. It has two inputs A and B. The two signals are mixed together with variable percentage. When the manual control CF is fully CCW only signal A appears at the CF Out socket. When the manual control CF is fully CW only signal B appears at the CF Out socket. In the centre position of the manual control both signal appear with the same level. In addition a control voltage input CV with attenuator is available to enable voltage control of the crossfade.

Two LEDs display the crossfading shares of input A and B.

The crossfader uses two high quality VCAs (SSM2164). Inputs and outputs are DC coupled. Consequently it can be used for audio signals and slowly varying control voltages as well.

The sockets of the upper section (triangle and sine) are normalled to the inputs A and B of the crossfader section. That way the crossfader is used to fade between triangle and sine of the VCO or LFO connected to the waveshaper. If other signals are plugged into the input sockets A and B these signals are used for crossfading.

The main application is to fade between two different waveforms of a VCO or LFO or two different VCF outputs. But the module can be used for any other signals too as the waveshaper and crossfader sections are independent apart from the normalled sockets.

Notes: Welcome to the Rosci soundscape. Rosci is a digital VCO that generates random waveforms to create unique, rich, and full sounds. You are able to control how complex the sound is-add harmonics and have a completely unique shape generate using the generate button/trigger. BUT, it can also be tuned to output basic waveforms (sine, square, sawtooth) if you so desire.

Tunable parameters breakdown:

COMPLEXITY: Essentially a generation of unique timbre.
ROUNDNESS: Set the basic shape of your waveform. Go from from sharp to soft sound, similar to filtering.
HARMONICS: Add up to 6 harmonies to your sound. The choir's here.
FORMANTS: Accentuate certain overtones in your sound (like a voice singing "ooo", "ahh", "eee").
DETUNE: Add a classic 'detune' with a changing phase wave for extra wide sound.

How does it work?

It is a pipeline of algorithms, which generates and modifies a waveform starting from top to bottom. Rosci works on a principle of key points: the generate button generates key point location and amplitudes to be passed down the pipeline.

Tunable parameters:

Beginning with complexity, you set the number of key points (even numbers only to create a waveform). Lowest complexity sets two points, and highest complexity sets up to 20 points. The number of key points will vary with each waveform generated. From there, the roundness sets the type of interpolation of the key points, from square to sine. Adjusting the harmonics creates copies of the waveform and adds them to the original waveform at double, triple, ... up to 6x the base frequency. Formants maintains the frequency of the wave, but squishes it so there is 'empty space' in between (this is also called pulsar synthesis). Finally, detune copies the waveform and 'detunes it' by increasing the frequency ever so slightly. And there you have it: a unique Rosci soundscape :)

Technical specs:

Module Size: 3U X 6HP X 25 mm Deep.
Current Draw: 160mA@ 12V, 20mA@ -12V.

What's in the box:

1x Rosci module
1x User Manual
1x Power cable
2x Mounting screws

Notes: The VCZIII voltage controlled oscillator modules are Feedback's latest creation and are based on the VCOs of one of the most revered analogue instruments, the famous British pin matrix synth released in 1969.

The VCZIII series VCO is a result of the collaboration of Feedback modules and CMS-LAB and is a modern re-creation of those temperamental, organic and beautiful sounding VCOs from 1969 but with enhancements and adaptations to the Eurorack needs of 21st century.

There are two type of VCOs, VCZIII A based on VCO1 with variable shape SINE & SAW waveforms, VCZIII B based on VCO2 & VCO3 with variable TRIANGLE & PULSE waveforms.

Also, each VCO comes in two versions, one with normal fine tune potentiometers and one with precision multiturn potentiometer.

THIS VERSION IS WITH BOURNS MULTITURN FINE TUNE POTENTIOMETER.

Tech specs:

- 12HP width
- 35mm depth behind front panel including the power connector
- standard 10 pin euro power +12V / -12V
- power consumption +12V 50mA , -12V 30mA

Notes: The Flexshaper is a highly versatile module when it comes to modify evolving voltages in other directions and levels.

Five settings allow you to fold/expand/clip/compress/invert partially or completely any CV or audio signal.

The module can act as an envelope-shaping tool, frequency multiplier, waveshaper, clipper, distortion, limiter, curve changer, and more.

Five CV inputs offer limitless control over the placement of the voltage points for dynamic signal sculpting.

Birth of the product

The idea of the Flexshaper comes from a feature in the Oberheimr Matrix synthesizers called Tracking Generator.

This signal processor was part of the modulation matrix and meant to be virtually inserted between modulation sources and destinations in order to change the shape of the controlling signal.

The Flexshaper applies the same concept using the same 5 shaping points. However, it goes beyond Oberheim's implementation on two main aspects:

It goes fast enough to process signals at full audio rate
The 5 points are dynamically adjustable (CV) in real-time
Besides, the Flexshaper can process adequately bipolar and unipolar Eurorack signals, even changing them one another.

Dimensions
6 HP
21 mm deep

Current Draw
6 mA +12V
7 mA -12V
32 mA 5V

Notes: GETREKT is a full analogue waveshaper - an aggressive one.

Why:

To add saturation and harmonics.
To disrupt - folding - and cut into pieces - clipping.
To generate square waves from other control voltage signals or audio sources.
To invert the polarity of a trigger or other kind of pulses.

With:

Sine waves - hear them scream.
Human voices - fracture them in pieces with clipping as a good ol' broken tape would do.
Complex audio sources - to control and flatten them.
Envelopes going to a drum module - rectify or fold that decay tail.

Dimensions:

4 HP
18 mm deep

Current Draw
35 mA +12V
30 mA -12V

Notes: After five years of conceptualization, development, stress, company destruction and relocation, redesign, existential questions, prototyping, and willpower, WMD's Skorpion is ready to decimate and reanimate whatever you throw at it -- creating goosebump worthy sounds you've never heard before.

Skorpion is the epitome of WMD's ethos, "New Sounds, Maximum Experience". Painstakingly designed UI, all the CV I/O and controls you could ask for, and a broad spectrum of subtle to 100% NOT subtle swarms of harmonics, chaos, and character. This module is packed full of features to provide continuously explorable fun whether you are experimenting or meticulously crafting a sound that is 100% yours.

Skorpion builds on WMD's's long pedigree of experimental module designs, exploring a new method of wavefolding using thresholds and target voltages to control a powerful vector core. The design process has been very technically challenging, using high speed cmos and precise analog design with hybrid digital overlay for a solid UI.

Skorpion is an 8-stage analog wavefolder that allows you to precisely mangle simple waveforms into complex shapes with a fun, hands on fader interface. Taking the concept many steps further, internal modulation sources allow for macro animation of multiple parameters simultaneously, creating rich, evolving harmonic movement never heard before in hardware.

The Controls

The SHAPE and SLOPE controls allow for smoother or harsher added harmonics, and the 1V/OCT CV input is required for tracking timbre across notes.

FOLD controls the input gain of the signal, causing it to hit each of the eight THRESHOLDS causing a reversal in the output at each point. The signal can be driven towards one of three TARGETs: 5V, the Sliders, or the signal at the CLIP jack (normalled from IN).

SLOPE controls the baseline rate of the output, the higher the slope, the higher the harmonics. The overall slope rate is modified by 1V/OCT and SHAPE.

SHIFT is the classical vertical shift that makes the wavefolder sound like a chorus with subtle modulation.

SHAPE is a feedback control affecting the slope rate of the wavefolder. Eight different sources are available for feedback. The SYM switch decides whether the modulation is applied symmetrically when above or below 0V.

OUTPUT controls whats at the output jacks, the DRY signal, the WET signal, or a mid side stereo processed WIDE signal. WIDE is generated using a second vector core with a variable short delay. If all THRESHOLDS are inactive, a gate is normaled here. The intention being that if the input signal is too low to cause any folding, the OUTPUT circuit is pulled DRY so that you never get silence from the Skorpion.

The EQUALIZE THOLDs switch disables the sliders and forces an equally spaced threshold more akin to classic wavefolders. Modulation is disabled in this mode. Also controllable with a jack.

TARGET ORDER determines which slider is selected when the threshold is activated. Basically, it allows for a different order on the way up as way down producing pleasingly different timbres when using the sliders for target.

SYNC has three modes, OFF in the center. HARD which resets the vector core to 0V at every zero crossing of the input waveform. and SOFT which vectors core toward 0V at the current rate.

HALT IF TARG=0 makes the vector core draw a horizontal line if the TARGET slider for that threshold is at 0 (fully down).

ANIMATION - Sliders, Spring Action Switch, and Macro Envelope:
There are 13 total internal modulation sources. A primary MACRO ENVELOPE, eight (8) Threshold LFOs, and four (4) CV modulators that normal to the FOLD, SLOPE, SHIFT, and SHAPE attenuverters. The CV modulators can be LFOs or Envelopes.

The switch rests in the center, making the sliders control the THRESHOLDs. When held to the left, the sliders set the TARGETs. When held to the right, the sliders control the MACRO SETUP detailed below.

The MACRO ENVELOPE is an Attack/Hold/Release style envelope. A gate here will start the envelope, lighting the LED blue, while the envelopes level will glow red. The times for Attack and Release are controlled in the MACRO SETUP mode by the first two sliders.

The MACRO ENVELOPE modulates the amplitude of all LFOs. If the CV modulators are set as envelopes, then the gate will start the envelopes, but they otherwise operate independently.

MACRO SETUP:

Parameters are modified in MACRO SETUP by holding the switch to the right and moving respective sliders.

Macro Envelope's Attack Time
Macro Envelope's Release Time
Threshold LFO Amount
Threshold LFO Rates
Fold LFO/ENV Rate/Time - CV(5)
Slope LFO/ENV Rate/Time - CV(6)
Shift LFO/ENV Rate/Time - CV(7)
Shape LFO/ENV Rate/Time - CV(8)
Envelope Times are shortest at the bottom of the slider and longest at the top.

LFO Rates are slowest at the bottom of the slider and fastest at the top.

Fold, Slope, Shift, and Shape modulation

Specifications
20HP
38mm Depth (with power cable)
Power: +200mA, -160mA
LFO rate: 0.0016Hz to 6Hz
ENV time: 0.05s to 600s

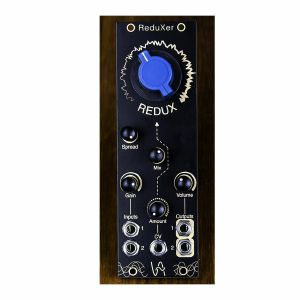

Notes: Reduxer is a stereo sample reducer effect module.

Depends on it's signal, It can produce dynamic range of sounds from knurly bitcrushing to formant/vowel style effects.

Extra resolution

Custom made Redux potentiometer with 300 degrees rotation for extra crashing resolution.

Double the power

Two proprietary sample reduction circuits with extra offset control on channel 2 via the "Spread", lets you create motion in the streo field for wider effect.

Stereo operation

Inputs are normelized - supporting mono to stereo configuration.

Reduction under control

Redux CV input with attenuator for external control of the bit reduction rate.

Reverse polarity protection

The module have proper reverse current and over current protection in its power input stage to protect the module in case it was connected the wrong way or connected to a faulty power supply.

Dimensions

Width: 8HP
Depth: 20mm

Current draw

+12V: 25mA
-12V: 25mA
