Back in stock: All genres

Notes: ***B-STOCK: Box opened, product in perfect working order***


'Beast's Chalkboard' is dual channel stepped voltage source and adder for your eurorack modular synthesizer system. It primarily is intended as a dual octave switcher for VCO's but has many other uses including sequence transposition, FM ratio creation, buffered CV distribution and VCO calibration.

Technical Specifications:

Supply: +/-12V (Reverse voltage & polyfuse protection)
Current Draw: ~30ma
Size: 6 HP
Depth: 22mm (including power header)
Offset Error: +/- 10mV

Notes: The mmMidi is a simple & compact MIDI interface for your Eurorack synthesiser. It translates two independent channels of MIDI note, velocity and gate information to corresponding control voltage signals via either a classic MIDI DIN type connection or as a driverless USB MIDI device.

The mmMidi also converts MIDI Clock to analogue x24 fixed clock and run outputs (i.e DIN Sync). The optional mmT expander provides a third MIDI channel of 8 key mapped gate outputs.

Requiring minimal configuration and a pain free set up, the mmMidi makes it easy to sync Pam's clock to your DAW, control multiple synth voices, and trigger drum or sample modules with the optional mmT expander. The new USB-C connection makes it easy to drive your modular not just from your computer but also via your tablet, phone or any USB MIDI Host.

(Note: New 2025 mkII version adds USB-C functionality.)

Technical Specifications

Power: +12V 50mA / -12V 0mA
Size: 4HP
Depth: 38mm
MIDI response latency: 200-400 uSec
Resolution: Factory calibrated 12 bit 0-8V CV outputs. +5V gates

Notes: ***B-STOCK: Box opened, product in perfect working order***


'Pamela's PRO Workout' is a compact programmable clocked modulation source for your Eurorack modular system. It provides 8 highly editable outputs producing various control voltage signals correlated and synced to a BPM based master clock.

Each output can provide everything from simple clocked triggers, complex rhythmic waveforms, quantised melodic patterns to random chaos with direct and assignable CV control over numerous parameters. These features together with a quick and easy to use interface provide almost limitless synced modulation possibilities in a tiny space.

Building on the original 'Pamela's Workout' & 'Pamela's NEW Workout' the evolved 'PRO' Pam maintains the precursor's form factor and intuitive workflow but improves and adds many new features with upgraded hardware, more CV inputs, a new full colour hi res display and rewritten software adding many new enhancements like micro grid timings and cross output modulations.

Through optional expander modules more CV input and outputs can be added with support for external non euro equipment through Midi and Din Sync outputs. Please enjoy your next generation PRO workout!

Size: 8HP
Power: +12v 60ma / -12v 10ma
Depth: 32mm (approx with power header)
Outputs: 0-5v buffered low impedance. 12 bit res. 3.8khz max update freq.
Inputs: CV 0v-5v / Clock, Run - rising edge 700mV min.

Notes: Aphelion packs a stereo distortion and low/high pass filter into a compact 8HP design, making it ideal for live performance setups. It features three unique stereo distortions in parallel with a continuous crossfade between them, controlled with the character knob or a cv input.

The first circuit is an overdrive that adds a lot of warmth and fattens up the sound without becoming too harsh.
The second one is a saturating wavefolder, that can add interesting extra harmonics depending on the waveform of the material.
The last distortion is inspired by the classic RAT guitar pedal. It adds an aggressive feel and grit to the sound.

A mix knob lets you blend the dry input signal with the distorted signal, before it hits the filter. Setting it fully dry bypasses the distortion effect.

If you need even more dirt, there's a handy +12dB gain switch, to really drive the inputs into overdrive. If you want to keep your low-end undistorted, you can switch on the Low-cut filter.

The non-resonant. This filter is also overdriven, adding some warm distortion and extra harmonics to the stereo filter combines a low pass and high pass stage, and uses an IC based on the classic SSM2040original signal, and limiting the output level. The cutoff knob has no effect in the centre, turning CCW creates a low pass and CW a high pass effect. It's possible to control the low and high pass filter cores independently using CV.

The filter bypass switch can be used for instant reintroduction of all frequencies into the mix upon release-a great tool for live performers.

Lastly the level knob can be used to attenuate the output.

Power: +12v - 100mA, -12v 80mA

Notes: Aphelion packs a stereo distortion and low/high pass filter into a compact 8HP design, making it ideal for live performance setups. It features three unique stereo distortions in parallel with a continuous crossfade between them, controlled with the character knob or a cv input.

The first circuit is an overdrive that adds a lot of warmth and fattens up the sound without becoming too harsh.
The second one is a saturating wavefolder, that can add interesting extra harmonics depending on the waveform of the material.
The last distortion is inspired by the classic RAT guitar pedal. It adds an aggressive feel and grit to the sound.

A mix knob lets you blend the dry input signal with the distorted signal, before it hits the filter. Setting it fully dry bypasses the distortion effect.

If you need even more dirt, there's a handy +12dB gain switch, to really drive the inputs into overdrive. If you want to keep your low-end undistorted, you can switch on the Low-cut filter.

The non-resonant. This filter is also overdriven, adding some warm distortion and extra harmonics to the stereo filter combines a low pass and high pass stage, and uses an IC based on the classic SSM2040original signal, and limiting the output level. The cutoff knob has no effect in the centre, turning CCW creates a low pass and CW a high pass effect. It's possible to control the low and high pass filter cores independently using CV.

The filter bypass switch can be used for instant reintroduction of all frequencies into the mix upon release-a great tool for live performers.

Lastly the level knob can be used to attenuate the output.

Power: +12v - 100mA, -12v 80mA

Notes: Messor is a stereo compressor with lots of tricks up its sleeves. From gluing a mix together to squashing drums, sidechaining kicks and sculpting transients.

It's a VCA based feed-forward compressor with a high quality low noise signal path. The magic happens in the internal sidechain that shapes the gain reduction envelope.

There are the familiar controls of a compressor, attack, release, threshold, ratio and makeup gain, as well as a switchable high-pass / low-pass sidechain filter.

The ratio can go past limiting and into over-compression, which can completely reshape transients, a great tool for sound design.

Being modular, of course there are CV inputs for Attack, Release and the Filter cutoff.

The Gain CV controls the makeup gain, but also doubles as a Stereo VCA with the Gain knob off.

The gain reduction envelope is also available, for turning filters or other VCA's into compressors for example.

There's a bypass switch, and another Warm/Pure switch, that can bring in a bit of additional saturation and compression in the form of analog tube simulation circuitry.

Lastly there's the possibility to insert an external sidechain, for that classic kick sidechain compression.

Dimensions
8 HP
25 mm deep

Current Draw
45 mA +12V
26 mA -12V

Notes: Capt'n Big-O is for people who like big massive analogue sounds-. 100% analog components, no oscillator on a chip here.

Width = 14hp

Depth = 26mm

100% analog, original design (not an oscillator on a chip)

Waveforms - sine, triangle, saw, and square

Wave folder/waveshaper - routed by default to sine but patchable to any waveform or external source

Drive circuit - essentially a 75x overdriven VCA (5V output)

Linear and exponential frequency modulation (FM)

Hard sync

Pulsewidth modulation

120mA power draw when running +12V rail

108mA power draw when running -12V rail

Frequency range of oscillator: full range - LFO through audible spectrum

Input voltage range of oscillator = -10V to +10V

Notes: Versatile Sinevibes software power in Eurorack form, the Radiant offers six powerful algorithms: dub delay, pole phaser, chord wrapper, feedback shifter, distortion and re-trigger. Filter, morph between presets and add optional reverb to all algorithms.

Supplier's Notes:
The Radiant, developed in collaboration with Sinevibes, is a powerful and highly creative multi-effect processor designed to bring unique and dynamic sound-shaping capabilities to modular synthesis setups.

Multi-Effect Processor with Six Selectable Core Algorithms

Radiant offers a versatile collection of six distinct core algorithms, designed to be both familiar and experimental:

Dub Delay

Pole Phaser

Chord Wrapper

Feedback Shifter

Distortion

Re-Trigger

These algorithms contribute to a wide range of sonic possibilitiesifrom ambient soundscapes and subtle modulations to complex, evolving textures and otherworldly effects.

Morphing Between Presets

One of Radiant's standout features is its ability to morph between presets. This allows for seamless transitions between different effect states, creating evolving and dynamic sounds. The morphing feature makes it ideal for live performances, as users can shift smoothly between various sonic textures.

Three-Band Filter

Radiant includes an onboard three-band filter that lets users shape their sound by adjusting the low, mid, and high frequencies. This is particularly useful for fine-tuning the effects or isolating specific frequency ranges for more controlled sound sculpting.

Reverb and Sound Reverse

In addition to the core algorithms, Radiant provides a built-in reverb, adding space and depth to the sound. The sound reverse function allows for experimental sound manipulation by reversing the audio signal, creating eerie, backward effects that can be synced to the external clock.

Preset System and Save Function

Radiant features a straightforward preset system that allows users to save and recall different effect configurations across 3 available slots. These presets can be morphed in real-time, offering expanded creative possibilities.

User-Friendly Interface

Despite its complex capabilities, Radiant is designed with a simple and intuitive user interface. The module offers easy-to-use controls, allowing for quick adjustments and real-time tweaking of effects. This makes it accessible for both experienced modular users and those new to modular synthesis, providing a powerful yet approachable tool for creative sound design.

Notes: Module A-103 is a voltage controlled low pass filter with 18dB/octave slope. The circuit is based on a modified transistor ladder (Moog ladder) and is a reproduction of the legendary TB303 filter.

As for the rest the A-103 is identical to the A-120 Moog low pass filter (same controls, inputs/outputs) only the filter sound is different.

Notes: Module A-124-2 is the slim version of the Wasp filter module A-124.

The main difference compared to the A-124 are the small controls for Mix and Input Level because for lack of space. And the lowpass or highpass signal is available at a separate socket. A jumper is used to determine if lowpass or highpass appears at the socket.

All other features are the same as the A-124.

Dimensions:
4 HP
20 mm deep

Notes: Module A-156 is a Dual Control Voltage Quantizer. A quantizer converts a continuous control voltage in the range 0...+10V into a stepped output voltage in the same voltage range (i.e. only certain voltages occur). Normally 1/12 V steps are used to obtain semitone steps. Quantizer 2 of the A-156 allows has more sophisticated quantizing modes like major scale (i.e. only voltages corresponding to the major scale), minor scale, major chord, minor chord, fundamental + fifth and addition of seventh or sixth when chords are selected. Only those voltages appear at the CV output which comply with the selection rule (e.g. minor chord with seventh). The mode setting of quantizer 2 is done with 3 switches (1-0-1 type with middle position). From the factory quantizer 1 is working in the semitone mode. But there is a jumper on the pc board that can be changed so that even quantizer 1 uses the same scale as quantizer 2.

For each quantizer the following in/outputs are available:

- Control voltage input (CV In): The input for the continuous voltage to be quantized
- Control voltage output (CV Out): The output of the quantized voltage
- Trigger input (Trig.In): If this jack is left open the quantizer is working permanently. If a rectangle voltage is applied quantisation happens only at the rising edge of the signal (e.g. from an LFO or MIDI-to-Sync interface). Thus the quantizing can be synchronized with other events
- Trigger output (Trig.Out): Whenever a quantisation happens (i.e. a new voltage is generated at the CV Out) a positive pulse occurs at this output. It may be used to trigger an envelope generator (ADSR) or for triggering other modules (sequential switch A-151, trigger divider/sequencer A-160/161, trigger delay A-162, ...). If none of these functions are used the jack is left open

On top of that the A-156 is provided with a common transpose CV input having an additive effect on both quantizers. This input is quantized in semitone steps. A typical application is the transposition of a sequence generated by the A-155 by a second control voltage (e.g. coming from the MIDI-CV interface A-190).

Typical applications:

- Quantizing the CV sequence generated by an A-155 (semitone, only major scale, only minor scale and so on)
- Quantizing the voltage coming from the Trautonium Manual / Ribbon Controller A-198, Theremin A-178 or Light-to-CV module A-179 to get accurate semitones or major/minor scale tones
- Arpeggio-like effects with LFO, random, noise, envelope generators as CV sources (for negative or symmetrical voltages an offset must be added, e.g. with the offset/attenuator module A-129-3, to obtain positive voltages for the A-156 input)

Width: 8 HP / 40.3 mm
Depth: 55 mm (measured from the rear side of the front panel)
Current: +50mA (+12V) / -10mA (-12V)

Notes: The Furthrrrr Generator has a main oscillator (carrier) with an extensive and fully voltage controllable wave multiplier and a modulation oscillator (modulator) that can cross-modulate the carrier. Each oscillator has hard and soft sync and also features an integrated tuner: if both LEDs are lit the VCO is at note A. Left LED is lit at note Ab and right LED at A#. Frequency potentiometers are ten-turn models and thus allow for easy tuning. Frequency range of the VCOs is 10Hz-10kHz (and much lower in modulator's LFO mode). Both VCOs feature 2 frequency CV inputs (1x with bipolar attenuator, 1x with 1V/octave), one FM input (jumper selectable between linear and exponential FM) as well as separate input for hard and soft sync. The voltage characteristic can be selected between 1V/octave and 1.2V/octave (Buchla norm).

The main oscillator (carrier) outputs the waveforms sine, saw, square and white noise. The two outputs marked with the magic eye are outputs of the "harmonic section" that generates very complex sounds by the wave multiplier and its parameters symmetry, order and Furthrrrr in the module's right-hand section. Symmetry lowers the level of even harmonics and amplifies the odd harmonics (this affects the pulse wave's width as well). Order adds saturation to the high order harmonics and resembles a low pass filter. Furthrrrr alters the level of harmonics set by the other parameters and produces very interesting, partly brute sounds with lots of harmonics by clipping and folding the wave. All three parameters can be voltage controlled. The carrier oscillator also has inputs for hard and soft sync, the sync-switch can synch directly to the modulator.

The modulation oscillator (modulator) has three wave forms with direct outputs: sine, saw and square. Using the internal modulation via the "mood section" the waveform is selected with a button; an additional staircase wave form is available here, but it can be overridden by inserting a signal into the external input socket. A switch activates the LFO mode.

The Mood section is responsible for the internal modulation of the carrier by the modulator. Switches determine the modulation destination(s) that can be activated simultaneously. These are the Furthrrrr parameter of the harmonic section, the amplitude and the frequency of the carrier oscillator. The "balanced" switch activates the ring modulation between both VCOs. intensity of modulation is controlled by the "mood index" potentiometer and the according CV input with bipolar attenuator.

Notes: The Furthrrrr Generator has a main oscillator (carrier) with an extensive and fully voltage controllable wave multiplier and a modulation oscillator (modulator) that can cross-modulate the carrier. Each oscillator has hard and soft sync and also features an integrated tuner: if both LEDs are lit the VCO is at note A. Left LED is lit at note Ab and right LED at A#. Frequency potentiometers are ten-turn models and thus allow for easy tuning. Frequency range of the VCOs is 10Hz-10kHz (and much lower in modulator's LFO mode). Both VCOs feature 2 frequency CV inputs (1x with bipolar attenuator, 1x with 1V/octave), one FM input (jumper selectable between linear and exponential FM) as well as separate input for hard and soft sync. The voltage characteristic can be selected between 1V/octave and 1.2V/octave (Buchla norm).

The main oscillator (carrier) outputs the waveforms sine, saw, square and white noise. The two outputs marked with the magic eye are outputs of the "harmonic section" that generates very complex sounds by the wave multiplier and its parameters symmetry, order and Furthrrrr in the module's right-hand section. Symmetry lowers the level of even harmonics and amplifies the odd harmonics (this affects the pulse wave's width as well). Order adds saturation to the high order harmonics and resembles a low pass filter. Furthrrrr alters the level of harmonics set by the other parameters and produces very interesting, partly brute sounds with lots of harmonics by clipping and folding the wave. All three parameters can be voltage controlled. The carrier oscillator also has inputs for hard and soft sync, the sync-switch can synch directly to the modulator.

The modulation oscillator (modulator) has three wave forms with direct outputs: sine, saw and square. Using the internal modulation via the "mood section" the waveform is selected with a button; an additional staircase wave form is available here, but it can be overridden by inserting a signal into the external input socket. A switch activates the LFO mode.

The Mood section is responsible for the internal modulation of the carrier by the modulator. Switches determine the modulation destination(s) that can be activated simultaneously. These are the Furthrrrr parameter of the harmonic section, the amplitude and the frequency of the carrier oscillator. The "balanced" switch activates the ring modulation between both VCOs. intensity of modulation is controlled by the "mood index" potentiometer and the according CV input with bipolar attenuator.

Notes: The Grand Terminal is a digital multipurpose module. Its two function generators can be used as envelopes, LFOs or VCOs. The 2 filter channels individually offer 8 modes of operation, and combined with its mixing and routing capabilities and a multi effects unit, it is not only a complete back end of a synth voice, but can also be used as a synthesizer voice, stereo filter bank or general purpose sound effects processor.

The Grand Terminal is based on an ARM M4 DSP, audio resolution 48 kHz/16Bit. Its two filter channels can be used in parallel or serial, and there is a link mode for stereo operation. The Audio inputs have individual trimmable gain stages to integrate the Grand Terminal into different production environments. There´s a soft clipping feature in order to prevent unwanted distortion. Gate A is normalized to Gate B for easy parallel processing.

Each of the filters can be set to any of 8 filter types, which are: Transistor Ladder Filter (Low Pass), Diode Ladder Filter (Low Pass), Vactrol Low-Pass Gate, Resonant Vactrol Low-Pass Gate, State Variable Low-Pass Filter, State Variable High-Pass Filter, State Variable Band-Pass Filter, Comb Filter. The filter can be controlled in 2 parameters manually as well as via CV. The outputs of this section can also be controlled in Volume and Pan position. At this stage, the unit is designed to distort in the upper third of the gain control setting.

The built-in multi effects processor features eight algorithms which can be altered in 2 crucial parameters and a possibility to crossfade between the dry and the effected signal. Its algorithms are: Hall Reverb, Shimmer Reverb, Room Reverb, Spring Reverb, Ping-Pong Delay, Tape Delay and Chorus. At the end of the audio path, there´s a Master Volume Control as well as one Mono and one Stereo output.

The two function generators can operate as AD or AR envelopes. All time parameters can be set between 1 ms and 10 seconds, manually as well as via CV. The envelopes can be individually set to loop and then act as LFOs or VCOs (following V/Oct for about 6,5 octaves). They also feature End-of-Stage Outputs.

When used in connection to the Gateway, all controls which are normally set by jumpers on the back of the module are accessible from the Gateway´s front panel.

Notes: The Grand Terminal is a digital multipurpose module. Its two function generators can be used as envelopes, LFOs or VCOs. The 2 filter channels individually offer 8 modes of operation, and combined with its mixing and routing capabilities and a multi effects unit, it is not only a complete back end of a synth voice, but can also be used as a synthesizer voice, stereo filter bank or general purpose sound effects processor.

The Grand Terminal is based on an ARM M4 DSP, audio resolution 48 kHz/16Bit. Its two filter channels can be used in parallel or serial, and there is a link mode for stereo operation. The Audio inputs have individual trimmable gain stages to integrate the Grand Terminal into different production environments. There's a soft clipping feature in order to prevent unwanted distortion. Gate A is normalized to Gate B for easy parallel processing.

Each of the filters can be set to any of 8 filter types, which are: Transistor Ladder Filter (Low Pass), Diode Ladder Filter (Low Pass), Vactrol Low-Pass Gate, Resonant Vactrol Low-Pass Gate, State Variable Low-Pass Filter, State Variable High-Pass Filter, State Variable Band-Pass Filter, Comb Filter. The filter can be controlled in 2 parameters manually as well as via CV. The outputs of this section can also be controlled in Volume and Pan position. At this stage, the unit is designed to distort in the upper third of the gain control setting.

The built-in multi effects processor features eight algorithms which can be altered in 2 crucial parameters and a possibility to crossfade between the dry and the effected signal. Its algorithms are: Hall Reverb, Shimmer Reverb, Room Reverb, Spring Reverb, Ping-Pong Delay, Tape Delay and Chorus. At the end of the audio path, there's a Master Volume Control as well as one Mono and one Stereo output.

The two function generators can operate as AD or AR envelopes. All time parameters can be set between 1 ms and 10 seconds, manually as well as via CV. The envelopes can be individually set to loop and then act as LFOs or VCOs (following V/Oct for about 6,5 octaves). They also feature End-of-Stage Outputs.

When used in connection to the Gateway, all controls which are normally set by jumpers on the back of the module are accessible from the Gateway's front panel.

Notes: 2xSAM is 4 HP Dual Stereo Attenuator-Mixer

Several 2xSAMs can be chained together or with other HN stereo modules via sockets on the back side.

2xSAM's total mix stereo output can be internally sent to the Isolator, PanMix Jr, 3xStereo Mixer, or can be received from OUT, PanMix, PanMix Jr, 3xStereo Mixer, or another 2xSAM.

If jumpers are not installed (placed on one pin only by default) the max gain is 1x. When the jumper is properly placed on both pins - the gain is 5x. There are four inputs thus four jumpers. Each jumper is relevant to its channel.

27 mA +12V
27 mA - 12V
35 mm Depth
4 HP wide

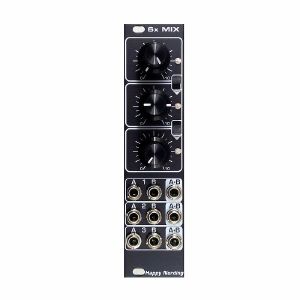

Notes: 6xMIX is a six channel audio (AC coupled ) mixer, channels arranged in three groups with separate outputs having led indicators. Each group can be switched to mix with the subsequent group, allowing for 2-2-2, 4-2, 6 mix configurations. The module can also be used to mix two stereo channels plus separate group of two mono channels. Perfect audio performance with the lowest noise and distortion amounts.

The inner knobs control the A inputs, while the outer knobs control the B inputs.

Dimensions
6 HP
35 mm deep

Current draw
50 mA +12V
50 mA -12V

Notes: 6xMIX is a six channel audio (AC coupled ) mixer, channels arranged in three groups with separate outputs having led indicators. Each group can be switched to mix with the subsequent group, allowing for 2-2-2, 4-2, 6 mix configurations. The module can also be used to mix two stereo channels plus separate group of two mono channels. Perfect audio performance with the lowest noise and distortion amounts.

The inner knobs control the A inputs, while the outer knobs control the B inputs.

50 mA +12V
50 mA -12V
35 mm Depth
6 HP wide

Notes: 1U version of Happy Nerding's effects module, offering a total of 32 effects, with user-storable presets and CV control. Great value in a convenient package.

Supplier's Notes:
32 unique audio effects arranged in 4 banks of 8 effects. Three effect controls plus analogue Dry/Wet control with dedicated CV input. High quality stereo signal pass. Assignable CV input to effect controls or to Sample Rate reducer (changes internal clock). Four user storable presets - stores selected program and all three controls. Spin FV-1 based.

The last used effect, assigns and presets are always remembered.

32 effects are simultaneously available, but FX AID can be reflashed with other effects in any order.

Reflashing procedure is quite easy: playing 40 sec long .wav file of line level amplitude to CV input.

Reflashing mode: hold both buttons for 10 sec.

By default it runs on 32.77 kHz and, if sample rate reduction assign is used, this sample rate can be decreased down to 2000 Hz or brought up to 48 kHz.

Dimensions

24 HP
40 mm deep
Module is a 1U tile in Intellijel format

Current Draw

80 mA +12V
30 mA -12V

Notes: Isolator is your 4 HP solution for galvanic isolation between its inputs and 1/4 TRS balanced outputs, interfacing your Eurorack modular system without electric connection with the external equipment, which prevents possible ground loop issues.

If no signal is plugged to the right input, then the left input will be sent to both Left and Right outputs. "Level" knob adjusts output level for Left and Right channels, Phones knob sets the level for the headphones output.

Specs

50 mA +12V
50 mA -12V
45 mm Depth
4 HP wide

Notes: Isolator is your 4 HP solution for galvanic isolation between its inputs and 1/4 TRS balanced outputs, interfacing your Eurorack modular system without electric connection with the external equipment, which prevents possible ground loop issues.

If no signal is plugged to the right input, then the left input will be sent to both Left and Right outputs. "Level" knob adjusts output level for Left and Right channels, Phones knob sets the level for the headphones output.

Specs

50 mA +12V
50 mA -12V
45 mm Depth
4 HP wide

Notes: MMM VCF (M**g Multi Mode Voltage Controlled Filter) is a dual VCF having common controls for both parts. Thus, it can be used as a stereo filter, or patched with different combinations of the available inputs/outputs. And all this functionality is packed in the compact 8 hp wide module.

MMM VCF has the famous transistor ladder core introduced by Bob Moog, but also features the added Band Pass and High Pass modes, not available in the original design. Those extra modes greatly widen the possible spectral modification of the input sound.

The module was carefully designed to have vanishingly small noise and bleed.

Specifications

FREQ: 20 Hz - 22 kHz - manual frequency range
RES: 35 Hz - 22 kHz - self oscillation range
FM: 0 - 7,5 V will modulate the whole hearing range at max settings
LP: 24 db/oct Low Pass output
BP: 12 db/oct Band Pass output
HP: 12 db/oct High Pass output
Output impedance: 1 kOhm
Module depth: 4 cm
Width: 8 HP
Power consumption: +42 mA / -40 mA at +/-12 Vdc

Notes: MMM VCF (M**g Multi Mode Voltage Controlled Filter) is a dual VCF having common controls for both parts. Thus, it can be used as a stereo filter or patched with different combinations of the available inputs/outputs. And all this functionality is packed in the compact 8 hp wide module.

MMM VCF has the famous transistor ladder core introduced by Bob Moog, but also features the added Band Pass and High Pass modes, not available in the original design. Those extra modes greatly widen the possible spectral modification of the input sound.

The module was carefully designed to have vanishingly small noise and bleed.

Specifications

FREQ: 20 Hz ... 22 kHz - manual frequency range
RES: 35 Hz ... 22 kHz - self oscillation range
FM: 0 ... 7,5 V will modulate the whole hearing range at max settings
LP: 24 db/oct Low Pass output
BP: 12 db/oct Band Pass output
HP: 12 db/oct High Pass output
Outputs impedance: 1 kOhm
Module depth: 4 cm
Width: 8 HP
Power consumption: +42 mA / -40 mA at +/-12 Vdc

Notes: You can connect an Intellijel Gx (or Qx) gate expander module to Metropolix to provide eight additional gate and trigger outputs, which you configure via the MX button on the Metropolix panel.

Width: 4HP
Depth: 22mm
Power: 8mA @ +12V 0mA @ -12V

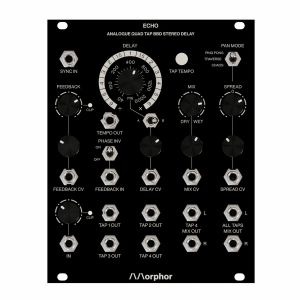

Notes: Vintage analogue delay meets modular versatility. Lush bucket-brigade sound with quad taps, stereo outputs, CV control of most parameters and a clock sync input to create tempo-aligned effects. Lovely.

Supplier's Notes:
The Morphor Echo merges the lush, classic warmth of analogue sound with modern, flexible control options, delivering a versatile stereo delay module for Eurorack. Taking up 20 HP in your rack, this syncable delay with 100% analogue audio path, features four 4096-stage Bucket Brigade Devices (BBDs) with individual tap outputs and a mix output, creating complex, rich, and textured delay effects with a delay range from 10 ms to 2040 ms. The Echo offers three distinct panning modes - Ping-Pong, Traverse, and Chaos - each with adjustable spread for stereo imaging.

The module supports inverted feedback and offers an external feedback input for additional routing options. Delay time is controlled through a tap tempo button, CV input, or clock sync input, with both quantized and continuous adjustments available. Additional features include CV control for dry/wet mix, feedback, and spread, a phase inversion toggle, tempo output, and a clock sync input that accepts both 1 and 24 PPQN. Whether you need rhythmic precision or organic, evolving delays, the Morphor Echo is designed to meet the demands of creative sound design.

Specifications

Panel width: 20 HP
Panel height: 3 U
Module depth: 33 mm
Dimensions: 128.5 x 101.6 x 33 mm
Mass: 245 g
Power Socket: 16-pin
Current draw:
12 V: 155 or 205 mA
-12 V: 120 or 120 mA
+5 V: 50 or 0 mA

Notes: The Morphor Sequencer - Quad Gate/CV is a versatile tool for both live Eurorack performances and songwriting. This module can be configured as a 2-, 3-, or 4-track sequencer, depending on the selected output configuration. With flexible track configurations and intuitive real-time step editing, this sequencer offers a handy approach to sequencing in modular systems being only 4 HP wide.

Whether you're controlling gates, CVs, or a combination of both, this module adapts to your creative needs with ease. Key features include up to 4 independent tracks, each capable of holding up to 16 pages containing up to 16 steps. Users can configure tracks as gate, CV, or combined gate/CV tracks, and even set up triad chords. The module supports customizable step lengths, glide times, individual track playback orders and reset behaviors making it ideal for creative sequences.

This module can operate as a standalone unit using its internal clock or be easily synchronized with an external clock source for integrated use within a larger system. The clock and reset jacks can function as both inputs or outputs, allowing flexible configuration to match your setup.

For expanded setups, multiple Morphor Sequencer modules can be daisy-chained via the bus connection on the back, ensuring that clock and reset signals are shared seamlessly across all connected modules. This makes it easy to sync multiple sequencers for complex, multi-track performances or compositions.

Specifications

Panel width: 4 HP
Panel height: 3 U
Module depth: 33 mm
Dimensions: 128.5 x 20 x 33 mm
Mass: 56 g
Power Socket: 16-pin
Current draw:
12 V: 95 mA
-12 V: 11 mA
+5 V: 123 mA

Notes: The Morphor VCO is a compact yet powerful analogue oscillator designed to be the foundation of your Eurorack system. Built around the legendary 3340 architecture, it delivers the clean, precise waveforms that have shaped countless classic synth sounds.

Despite its slim 6HP footprint, the Morphor VCO packs a versatile feature set. It offers four dedicated outputsisquare, saw, triangle, and sineiproviding a rich palette of tones. Pitch control is precise and stable across the entire audible range, with fine-tuning via a tune knob, CV input, and an attenuated FM control for added modulation flexibility.

A three-position octave switch, hard sync input, and pulse-width modulation (PWM) round out the module, making it a reliable and expressive sound source for any patch. Whether you're crafting deep basses, soaring leads, or complex FM textures, the Morphor VCO is ready to deliver.

Features

100% analogue
4 dedicated outputs
Trangle/Sine/Square/Saw
3-position octave switch
FM
PWM
Hard-Sync

Specifications

Panel width: 6 HP
Panel height: 3 U
Module depth: 25 mm
Dimensions: 128.5 x 30.3 x 25 mm
Mass: 111 g
Power Socket: 16-pin

Current draw:
12 V: 26 mA
-12 V: 23 mA
+5 V: 0 mA

Notes: This module is designed to generate a multitude of aggressive, punchy, violent and absolutely bonkers variations of the original unprocessed sound.

Transform any clean sound into a distorted monster, using 2x drive stages per channel with a wide range of distortion flavors ranging from subtle saturation to extreme fuzz.

Process two channels at the same time and create balanced and smooth or raw and rough transitions between them.

Allow the kick drum and bass line to coexist effectively in the mix, avoiding conflicts in the low-frequency range with env. follower and sidechain.

Shape any sound with 3 band adaptable EQ.

Function as a signal generator as well, this module can be pushed into self-oscillation at any frequency even with no input.

Add sub-octave tones to melodies and bass lines.

Preserve the dynamic range and clarity of the sound through parallel processing, ensuring that the original characteristics are not lost even when applying heavy distortion.

Add character, flexibility and madness to any source that sparks your imagination.

Notes: This module is designed to generate a multitude of aggressive, punchy, violent and absolutely bonkers variations of the original unprocessed sound.



Transform any clean sound into a distorted monster, using 2x drive stages per channel with a wide range of distortion flavors ranging from subtle saturation to extreme fuzz.



Process two channels at the same time and create balanced and smooth or raw and rough transitions between them.



Allow the kick drum and bass line to coexist effectively in the mix, avoiding conflicts in the low-frequency range with env. follower and sidechain.

Shape any sound with 3 band adaptable EQ.

Function as a signal generator as well, this module can be pushed into self-oscillation at any frequency even with no input.

Add sub-octave tones to melodies and bass lines.



Preserve the dynamic range and clarity of the sound through parallel processing, ensuring that the original characteristics are not lost even when applying heavy distortion.



Add character, flexibility and madness to any source that sparks your imagination.

Notes: Updated Eurorack version of one of the most interesting sequencers around, the original version being the inspiration for Intellijel's Metropolis and Metropolix, with multiple steps per stage and versatile gate options.

Supplier's Notes:
The M185 is the most intuitive and playable Eurorack sequencer.

It appeals as a hands-on performance orientated module for easy creation of complex melodic sequences.

It is the original multi-step-per-stage sequencer that inspired the Metropolis and Metropolix modules.

New for 2021: Now you can connect two M185s together to create powerful 16 stage sequences using the new expansion header.

Overview:
- 8 unique gate modes for creative rhythmic possibilities
- A/B split mode for two separate sequences, like having two sequencers in one box
- 2 channels of CV/GATE and MIDI I/O
- 15 Quantise scales [ NEW for 2021 ] OR pure analogue microtonal CV output

Inputs & outputs:
- 2 channels of CV and Gate outputs
- Expansion header to connect two M185s for 16 stage sequences [ NEW for 2021 ]
- Reset input [ shared with MIDI input ]
- Sync output [ shared with CH2 gate ]
- Bidirectional Clock I/O
- MIDI input for MIDI clock in, MIDI note transpose
- MIDI output for MIDI clock out, MIDI note output

Stage Details:
- 8 stages, each with individual 1-8 step repeats per stage
- 8 gate modes per stage [ Off, Once, All, 1/2, 1/3, 1/4, Probability or Programmable, and Long ]
- Programmable gate patterns for 'on the fly' X0X style programming of gate triggers [ NEW for 2021 ]

Even more details:
- AB serial split sequence mode with 1-8 sequence repeats for AAABAAAB sequence structures
- AB parallel split mode, for two separate simultaneous sequences that play at the same time
- Root note offset and reset trigger options from sequence B to A
- 2.5V / 5V voltage range selectable
- MIDI note output including programmable velocity
- MIDI to CV converter mode [wow]
- Programmable glide per stage
- Easy user upgradable firmware using MIDI sysex files.

Technical stuff:
- +12V = 75mA average, 110mA peak
- 12V = 10mA
- Width: 30 HP
- Depth: 25 mm
- Black anodised Aluminium panel, silkscreen in RAL 9002

110 mA +12V
10 mA -12V
0 mA 5V
25 mm deep

The assembled module comes complete with all the cables needed to get started:
1 x TRS MIDI adapter, 1 x TRS CH2 CV/GATE cable, 1 x Euro Power Cable

Notes: The Ultimate Output Expander For Hermod+

Introducing xp32, the perfect expander for unlocking 32 assignable CV or Gate outputs, amplifying the creative power of your Hermod+ sequencer.

Transform your Hermod+ into a 16-track CV/Gate powerhouse, an expansive MIDI/USB-to-CV interface, a preset manager, or customize your outputs to suit even the most intricate modular setups.

The xp32 opens a new world of possibilities for both live performances and studio setups, giving you the flexibility to realize your most complex musical ideas.

Seamless Integration.

Setting up the xp32 is as easy as connecting the included expander ribbon cable to the back of your Hermod+.

The xp32 integrates seamlessly: Hermod+ will automatically recognize it, and your 32 additional outputs are ready to use instantly.

With the xp32, Hermod+'s 8 CV/Gate tracks remain untouched. Instead, the xp32's 8 additional voices are internally mapped to Hermod+'s MIDI tracks, offering maximum expandability without altering your existing workflow.

Unmatched Precision & Flexibility.

Each of the 32 output jack is powered by a dedicated 16-bit industrial grade DAC, ensuring the best accuracy for all your control voltage signals, from pitch to fine modulations.

Easily configure each output as a Gate (for notes, triggers, or clocks) or as a CV (for pitch, velocity, aftertouch, modulation...).

High-precision.

Low noise.

At the heart of the xp32 are highly-precise digital-to-analogue conversion circuits, developed with meticulous attention to detail. Squarp have incorporated high-end components to guarantee reliable, low-noise, high-performance outputs that you can depend on for both small and large modular systems.

The 32 signal LEDs are driven by a fully analogue current-control circuit, guaranteeing zero digital noise.

Specifications

Power

Consumption : -12V 70mA, +12V 80mA, +5V 20mA

Hardware
Width : 14HP
Depth : 33mm
Height : 128,5mm (3U)
Weight : 170gr (0.37lbs)
32x CV outputs resolution : 16-bit DAC (industrial grade)
32x CV outputs range : -10V to +10V

Notes: AXXENT is an expander module for the METRON trigger and gate sequencer and adds 16 "accent" gate outputs. Each track is specifically tied to METRON tracks, making it a very intuitive addition to any METRON sequencing ecosystem.

Use AXXENT to send signals to additional envelopes, slews, drum accents, and other gate triggered functions.

METRON will need its Firmware updated to support AXXENT.

Dimensions:
Width: 4HP (20.32mm)
Height: Eurorack 3U (128.5mm Panel, 112mm PCB behind panel)
Depth Including Cables: 43mm

Do not connect power to expansion headers.

Notes: Poti II expander notable features:

- per-channel input and output attenuation for the SINE and ASSGN outputs
- per-channel shape modulation with switchable destination (wave folding, shape switching, PWM)
- stores settings during a power cycle
- LED indication of the discrepancy between the stored setting and current pot position
- 4HP
- +10/-0mA from Batumi II

Notes: Warna is a very useful utility module that helps you to manage control voltages in the system. Crammed in just 6 hp, there are five normalled sections: two buffered mults, two inverters, and a summing mixer. Each multiple routes the input signal to separated outputs without loss in voltage. Warna is designed for unity gain - if you apply a specific voltage to any input, it remains the same on the respective outputs. Inverters are hardwired to mults and invert the polarity of the signal applied to them. Both mults are also normalled to the mixer section via inputs. Patching anything to these inputs breaks the normalization.

The top and the bottom section both are buffered 1-in-4 multiples. The input can be inverted with a switch, i.e. its polarity will be changed by 180 degrees. Four inverted copies are then available at the outputs, meaning you can use these two sections as inverter. Bi-polar LEDs display whether the signal is positive or negative: yellow = negative, red = positive. The centre section is a four-input summing stage with amplification factor 1, a so-called unity-gain mixer. The multiples are normalized to the mixer which can be deactivated by patching.
